API Standard Pump VS4 – KVS4

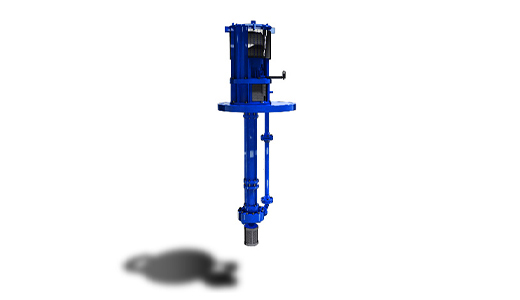

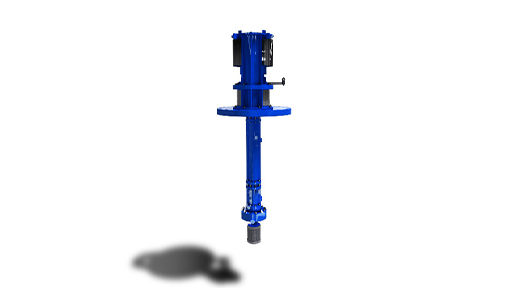

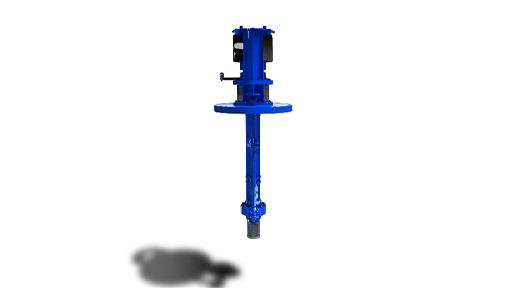

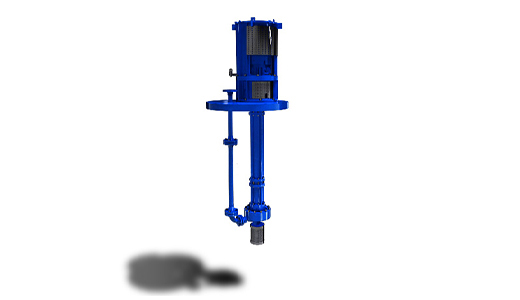

KVS4 is an API VS4 type process pump with a vertical, separate discharge line. This pump comes with a pit/tank mounted design. It is manufactured as per API 610, suitable to align with standard motors. The range covers a pump head of 225m. The pump offers a discharge pressure of up to Cl. 300#. With nozzle orientation at the bottom-top, the direction of rotation is clockwise when viewed from the coupling end. The KVS4 pump is suitable for applications in petrochemical industries, pit/sump applications, drain and amine applications, etc.
Max Head:Up to 225 m
Max capacity:Up to 750 Up to 750
- The pump is designed and manufactured as per API 610 standard.
- The Vertical Separate discharge line, Pit / Tank-mounted design feature ensures reliable operation under critical suction conditions.
- Offers Quick and easy removal and reassembly.
- Comes with a Simple vapour seal at the top plate to prevent leakage / API Single or Double Mechanical seal / Gland Packing option also available.
- Available at a lower cost than VS1 to perform the same duties.
- Available with Semi-open impeller option for handling solids.
- Petrochemical industries
- Pit/Sump applications
- Drain applications
- Amine applications
| Parameters | KVS4, KPDS, TAZN (NAMING TO BE DECIDED) |
| Capacity @ BEP m3/hr | Up to 750 |
| Head (m) | Up to 225 m |
| Temperature
Range oC |
-104 to 300
|
| Discharge Pressure rating | Up to Cl. 300 # |
| Suction Pressure kg/cm2(g) | Up to 40 |
| Nozzle Orientation (Suc./Dis.) | Bottom – Top |
| Standard Motor Synchronous Speeds (rpm) | 1000 / 1200 / 1500 / 1800 / 3000 / 3600 |
| Max. Operating Speed (rpm) | 3600 |
| Direction of Rotation | Clockwise when viewed from the coupling end |
| Flange Ratings (#RF) | Cl. 300 |
