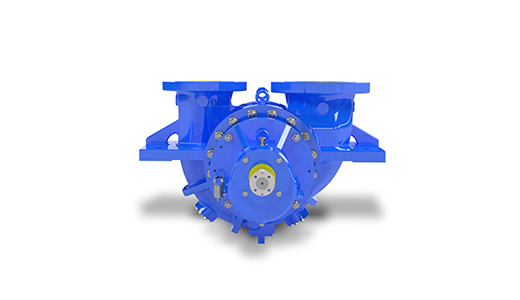

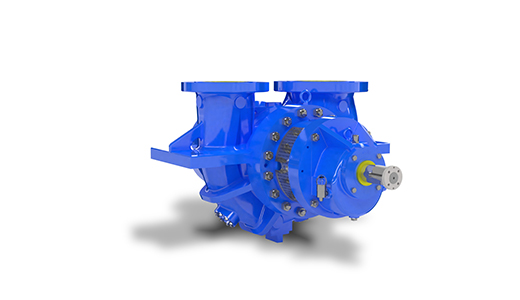

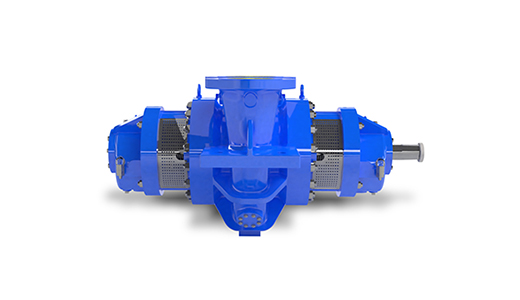

API Standard Pump BB2 – KS (KBSD)
The KS (KBSD) is an API BB2 type process pump with Centerline support. This pump with a heavy-duty design ensures high reliability and efficiency during stringent operating conditions. It is manufactured as per API 610. The back pullout feature ensures swift dismantling and assembly. This range of pumps come with a pump head up to 550 m, with a discharge pressure of up to Cl. 600#. Nozzle orientation as the and top-top, side-top, side-side. The direction of rotation is clockwise from the coupling end and anti-clockwise is also possible if required. This pump is suitable for applications in oil refineries and petrochemical industries, and chemical and allied industries. The pump is designed to have maximum parts interchangeability.
- Design and manufacture as per API 610 standard.
- Centerline supported heavy-duty design to ensure high reliability under stringent operating conditions.
- A variety of materials for the construction of the pump and seal flushing plans are available to cater to customer requirements and a wide range of applications.
- After removal of the coupling, spacer, bearings, and mechanical seals on both sides, the rotating element can be removed without disconnecting suction/discharge piping and the driver.
- Fluid handling in oil refineries and petrochemical industry
- High temperature and high-pressure critical applications in chemical and allied industries
- The pumps can also function as hydraulic power recovery steam turbines in chemical and process plants.
- High pressure and temperature applications in chemical and allied industries.
| Parameters | KS (KBSD) |
| Capacity ( m3/hr) | Up to 5500 |
| Head (m) | Up to 550 m |
| Temperature
Range °C |
-104 to 450
|
| Discharge Pressure | Up to Cl. 600 # |
| Suction Pressure kg/cm2(g) | Up to 80 |
| Nozzle Orientation (Suc./Dis.) | Top-Top,
Side-Top & Side-Side |
| Standard Motor Synchronous Speeds (rpm) | 1000 / 1200 / 1500 / 1800 / 3000 / 3600 |
| Max. Operating Speed (rpm) | 3600 |
| Direction of Rotation | Clockwise when viewed from coupling end
(Note-1) |
| Flange Ratings (#RF) | Cl. 300 / 600 |
Note 1: Anticlockwise when viewed from coupling end is also possible against requirement
