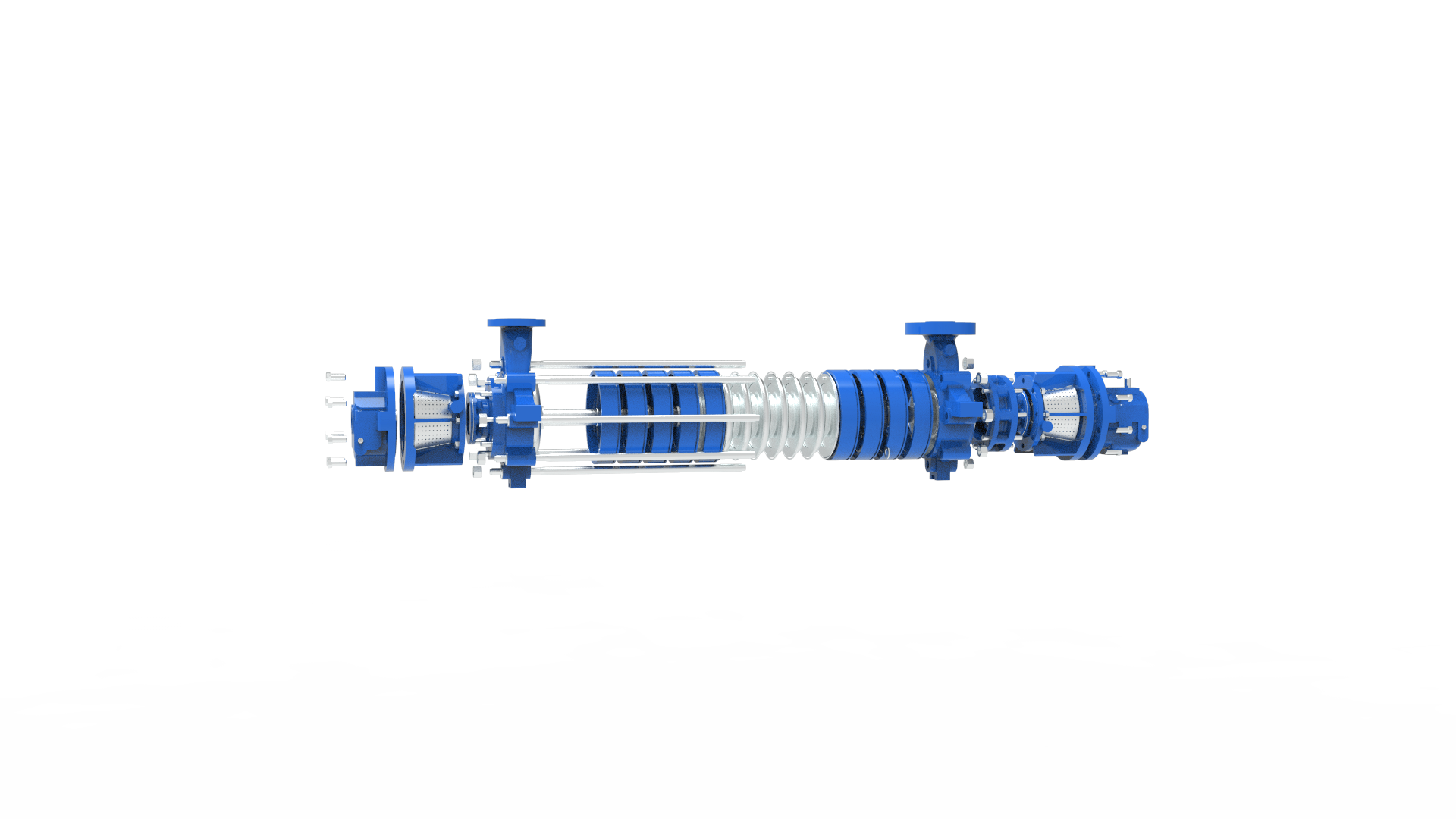

NON API Pump – RO Pump – KRO
We have successfully delivered over 1000 high-pressure pumps for fuel handling applications, particularly for oil refineries, petrochemical industries and water treatment plants.
Max Head:1200
Max capacity:1115 m3/hr
- Design and manufacture as per company standard.
- Multistage pump with ring section diffuser casing design with foot-mounted support to meet high temperature and high-pressure applications especially in BFW application
- Specially designed to meet high performance for superior and extended low-cost operation.
- Pump family designed to have max. parts interchangeability
- Desalination application
| Parameters | KRO |
| Capacity @ BEP m3/hr | 1115 |
| Head (m) | 1200 |
| Temperature
Range oC |
80 |
| Discharge Pressure | Upto cl 1500 # |
| Suction Pressure kg/cm2(g) | uptp 18.5 |
| Nozzle Orientation (Suc./Dis.) | Side – Top / End -Top |
| Standard Motor Synchoronous Speeds (rpm) | 3000 / 3600 |
| Max. Operating Speed (rpm) | 3600 |
| Direction of Rotation | Anticlockwise when viewed from coupling end |
| Flange Ratings (#RF) | Cl. 150 / 1500 |
