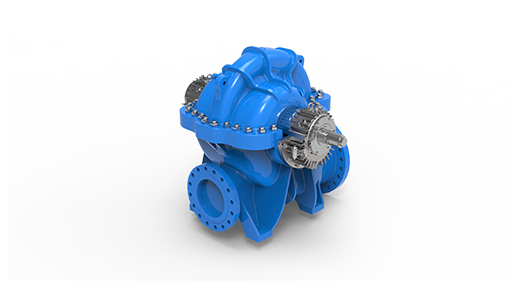

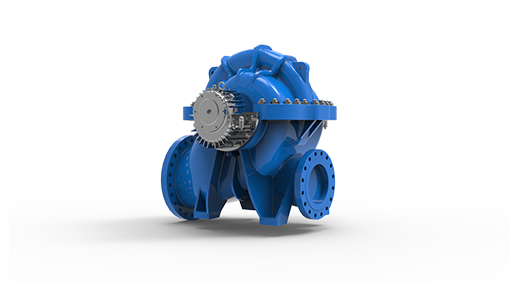

NON API Pump – BFW Pump – SS  (KBSH) / SSD (KBDH)

NON API Pump – BFW Pump – SS  (KBSH) / SSD (KBDH)

We have successfully delivered over 1000 high-pressure Boiler Feed Water pumps for fuel handling applications, particularly for oil refineries, petrochemical industries and water treatment plants.

Max Head:Upto 2500 Max capacity:Upto 650 m3/hr

  • Multistage pump with ring section diffuser casing design with centerline support to meet high temperature and high-pressure applications, especially in BFW applications.
  • Easy inspection and repair maintenance of bearings and mechanical seal after removal of coupling spacer only.
  • First stage impeller with double suction is provided in SSD models to improvise NPSH3 performance.
  • Pump family is designed to have maximum parts for interchangeability.
  • Bleed off flow extraction from intermediate casing.

  • High-pressure boiler feed water applications.
  • High-pressure mine drainage applications.
  • High-pressure applications in water treatment plants.
  • Pump as hydraulic power recovery turbine in water treatment plants.

Parameters SS/SSD (KBSH/KBDH)
Capacity @ BEP m3/hr Upto 650
Head (m) Upto 2500
Temperature

Range oC

-5 to 200
Discharge Pressure Upto Cl.2500#
Suction Pressure kg/cm2(g) Upto 17
Nozzle Orientation (Suc./Dis.) Top-top & Side-top
Standard Motor Synchoronous Speeds (rpm) 3000/3600
Max. Operating Speed (rpm) 7000
Direction of Rotation Clockwise when viewed from coupling end
Flange Ratings (#RF) Cl. 300/600/900/1500/2500
