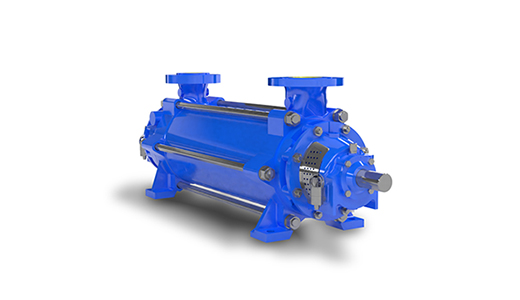

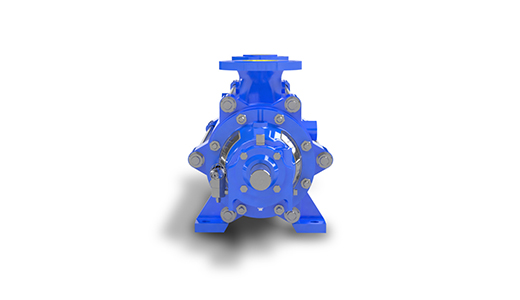

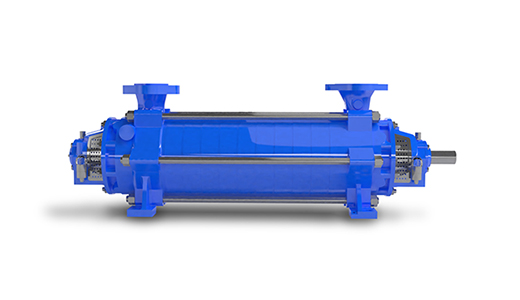

NON API Pump – BFW Pump – MSSH (KBSM)

NON API Pump – BFW Pump – MSSH (KBSM)

We have successfully delivered over 1000 medium pressure pumps to various power plants, RO plants as well DM water applications as required in various industries.

Max Head:Upto 850 (MSSH) Max capacity:Up to 170 (for MSSH) m3/hr

  • Multistage pump with ring section diffuser casing design with foot-mounted casing suitable for medium pressure requirements
  • The Pump family is designed to have maximum parts for interchangeability
  • Pump with TOP /TOP or SIDE / TOP nozzle orientation

  • Medium pressure boiler feed applications.
  • City water and medium pressure applications in water treatment plants.
  • RO plants
  • D M Water
  • HPRT

Parameters MSSH (KBSM)
Capacity @ BEP m3/hr Up to 170 (for MSSH)
Head (m) Up to 850 (MSSH)
Temperature

Range °C

-5 to 165
Discharge Pressure Up to Cl. 600
Suction Pressure kg/cm2(g) Up to 14
Nozzle Orientation (Suc./Dis.) Top-top & Side-top
Standard Motor Synchronous Speeds (rpm) 3000/3600
Max. Operating Speed (rpm) 3600
Direction of Rotation Clockwise when viewed from coupling end
Flange Ratings (#RF) Cl. 150/600
