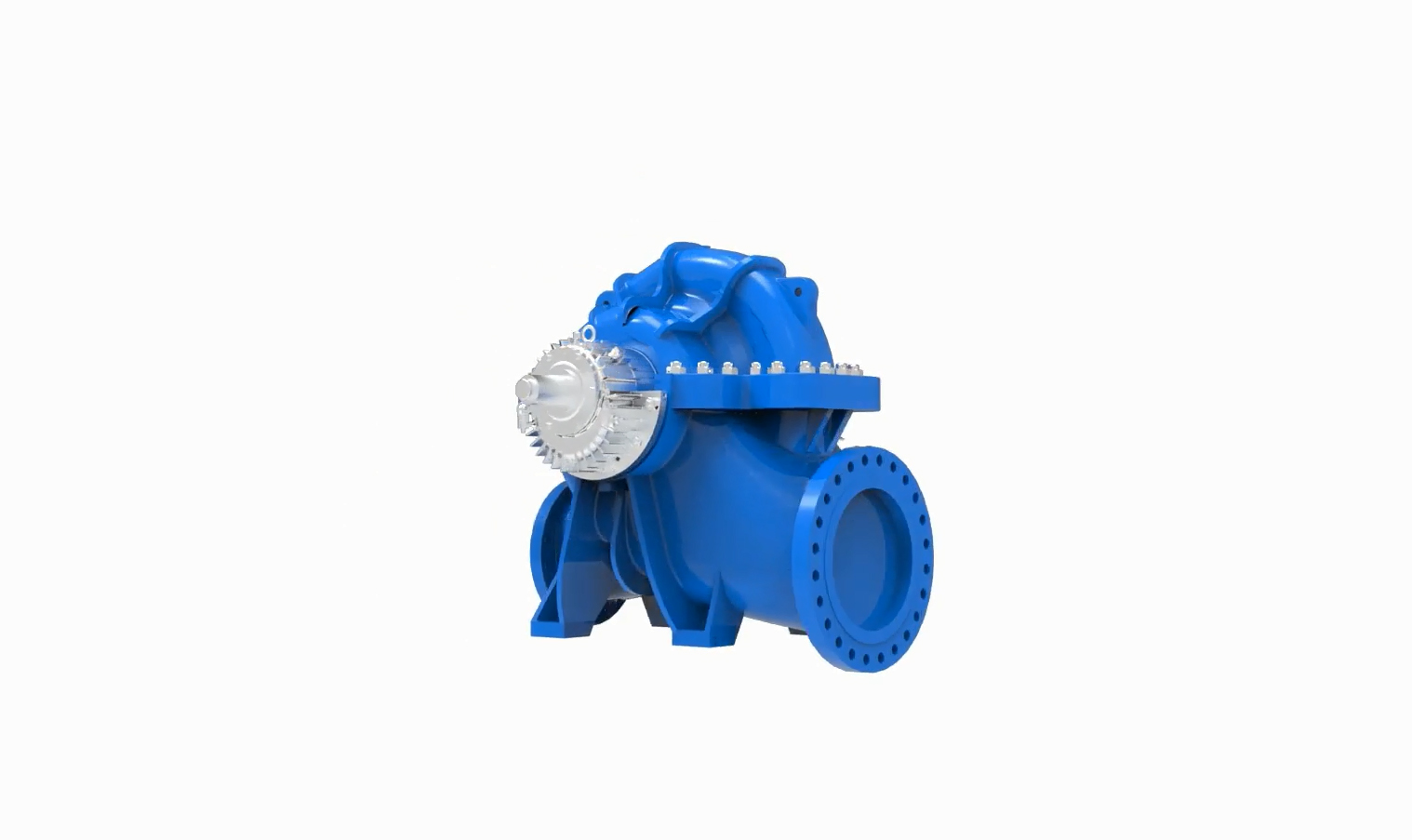

API Standard Pump BB1 – KBAD

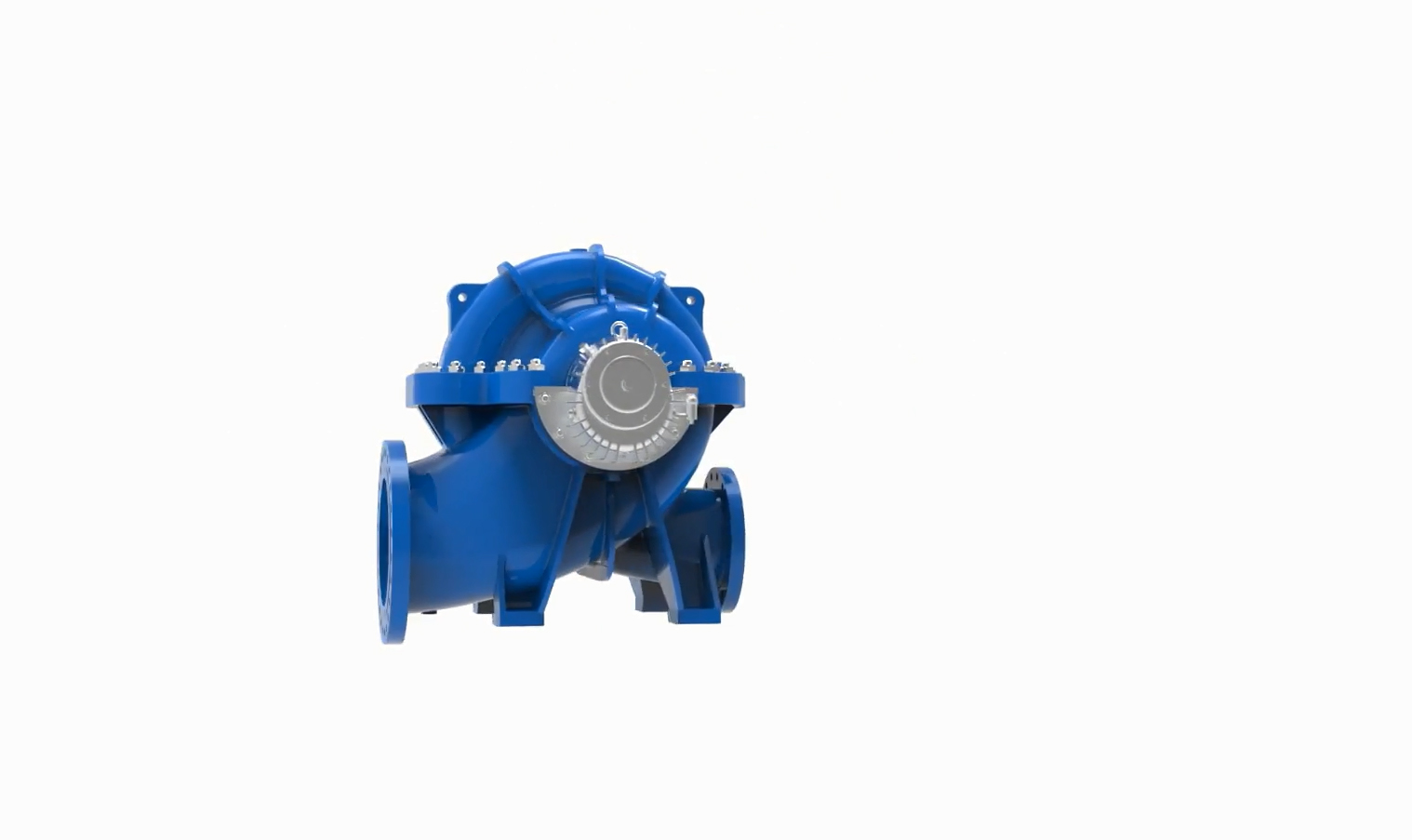

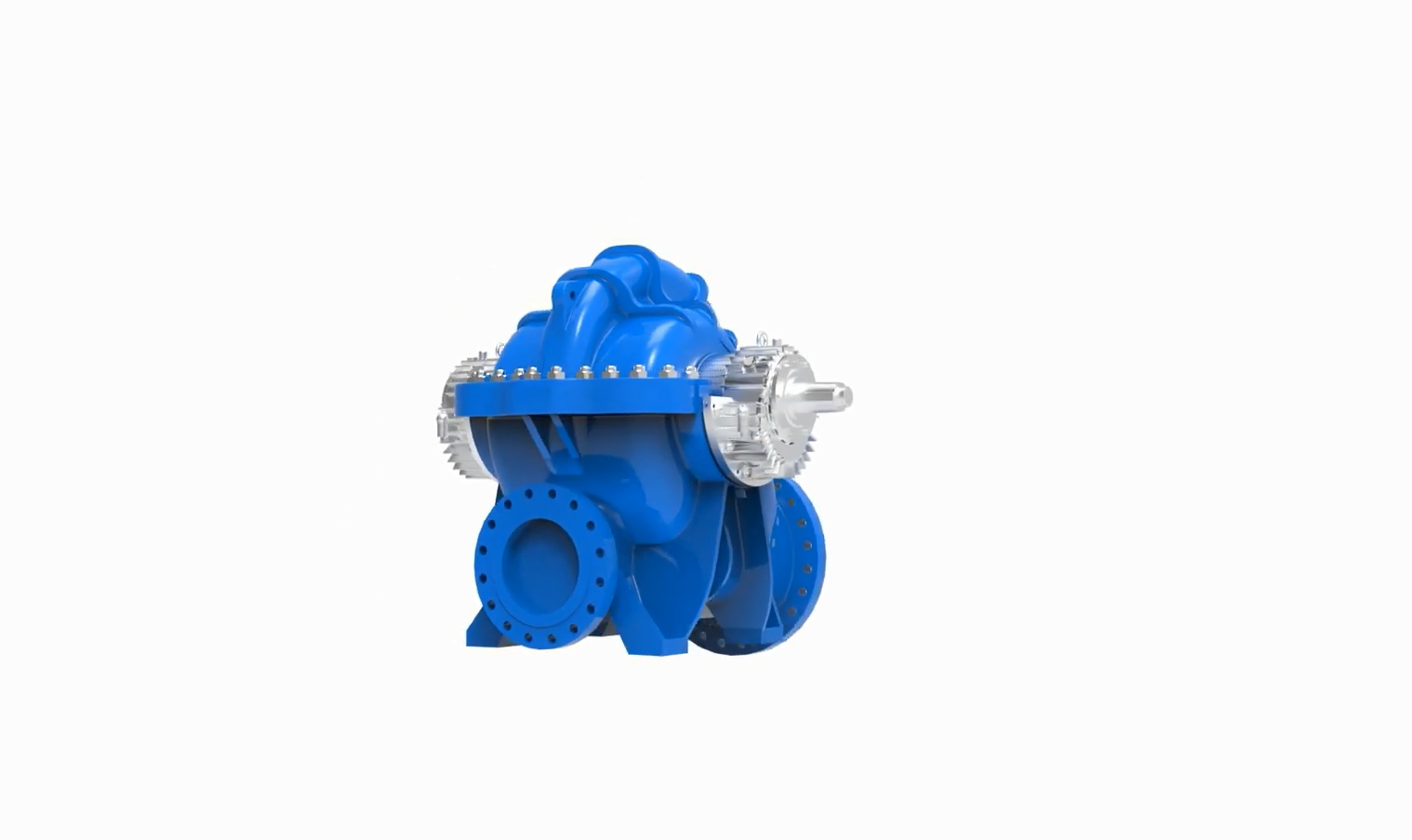

The KBAD is an API BB1 type process pump with near Centerline support. This pump with a heavy-duty axial split casing design ensures high reliability and efficiency during operations. It is manufactured as per API 610. The range covers a pump head of 460 m with a discharge pressure of up to Cl. 600#. Nozzle orientation as the side-side, the direction of rotation is clockwise when viewed from the coupling end. The KBAD pump is suitable for applications in oil refineries and petrochemical industries and chemical and allied industries.
Max Head:Upto 460 m
Max capacity:Upto 6240 m3/hr
- Design and manufacture as per API 610
- Near centerline supported heavy duty axial split casing single stage design for high capacity applications

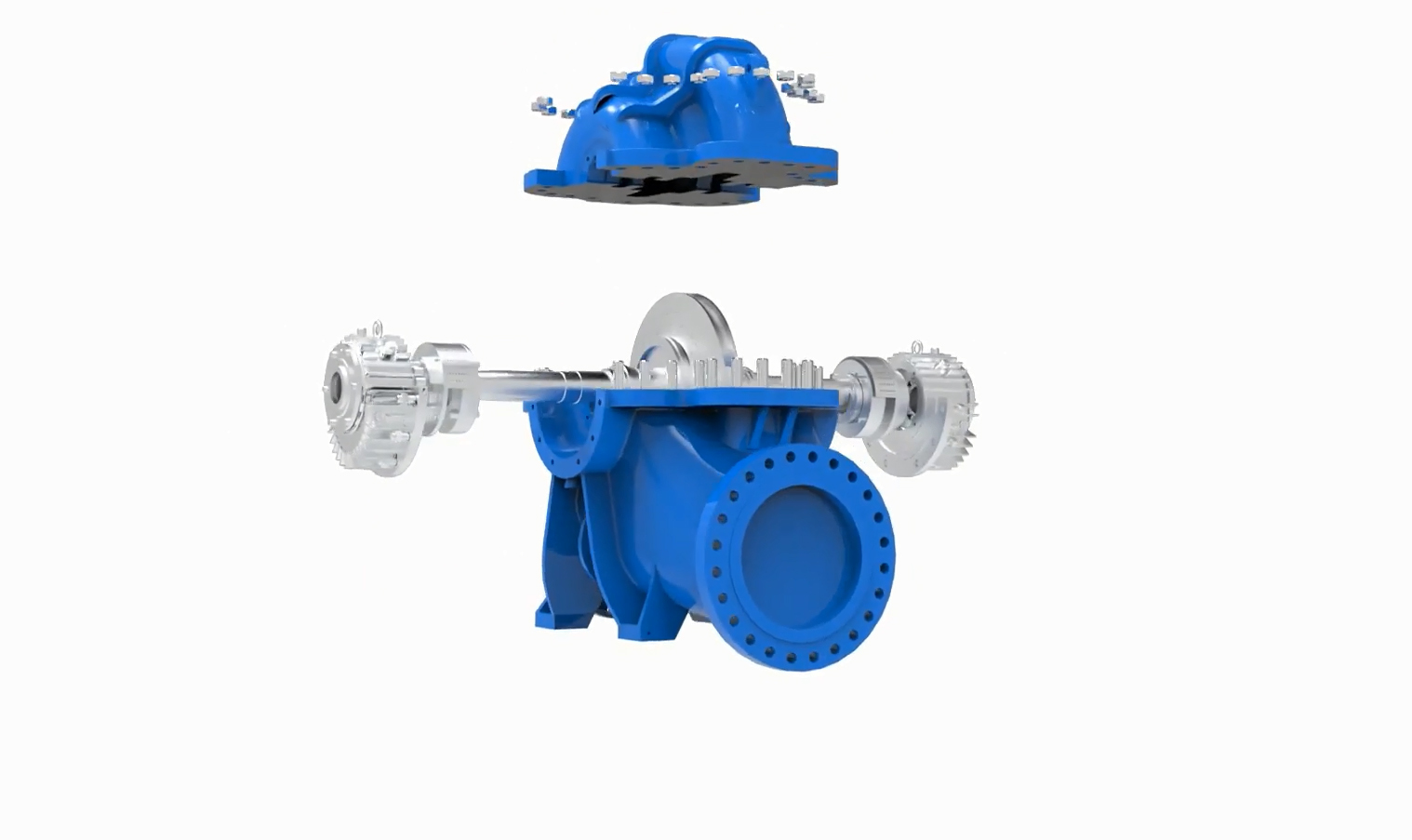

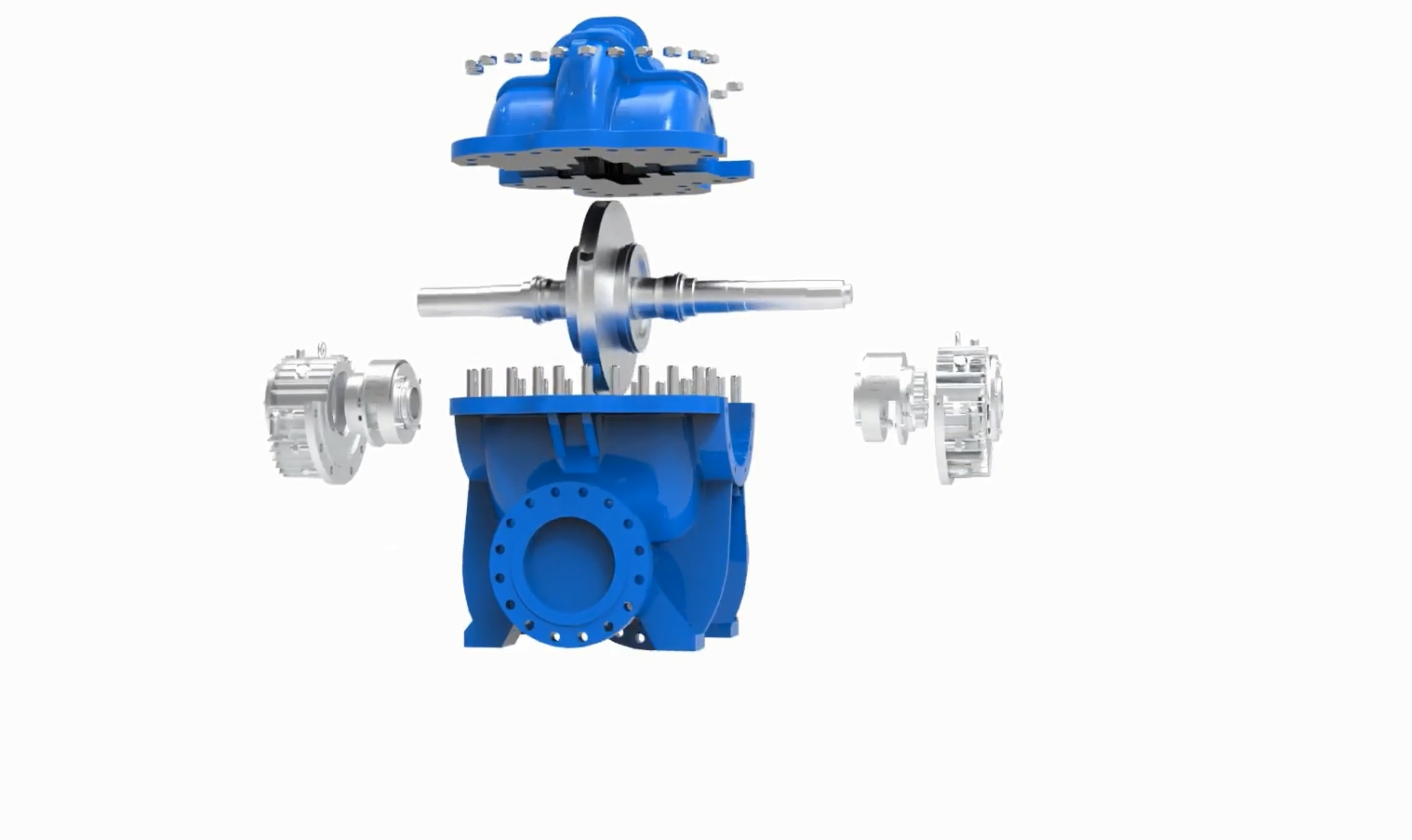

- Easy inspection and repair maintenance of bearings and mechanical seal after removal of coupling spacer only. The rotor can be removed by disassembling upper half casing without disturbing suction / discharge piping and driver
- Low NPSH requirement is achieved with double suction impeller
- High capacity application
- Cooling water circulations
- Irrigation
- Petroleum product Pipeline booster applications
| Parameters | KBAD |
| Capacity (m3/hr) | Upto 6240
Note 1 |
| Head (m) | Upto 460
Note 1 |
| Temperature Range ℃ | -100 to 200 |
| Discharge Pressure rating | Upto Cl. 600 # |
| Suction Pressure kg/cm2(g) | Upto 20 |
| Nozzle Orientation (Suc./Dis.) | Side-Side |
| Standard Motor Synchronous Speeds (rpm) | 1000 / 1200 / 1500 / 1800 / 3000 / 3600 |
| Max. Operating Speed (rpm) | 3600 |
| Direction of Rotation | Clockwise when viewed from the coupling end |
| Flange Ratings (#RF) | Cl. 300 / 600 |
Note-1 : More higher capacity and head is possible when pumps are operated at higher speeds
Related Products

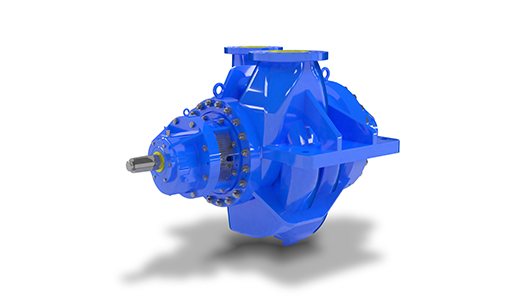

API Standard Pump BB2 – R2 (KBTS), R2D (KBTD)
