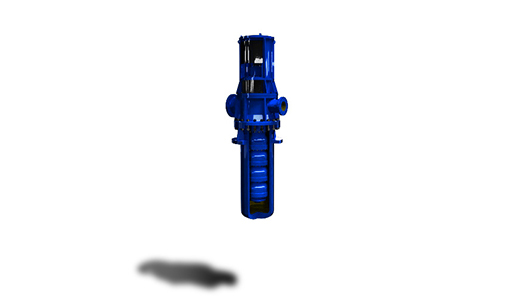

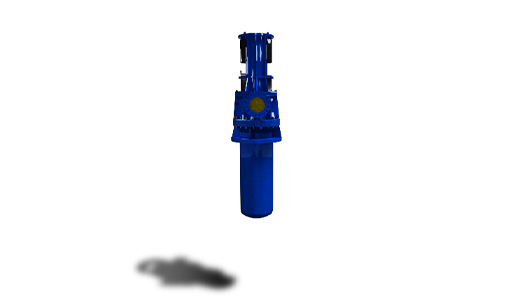

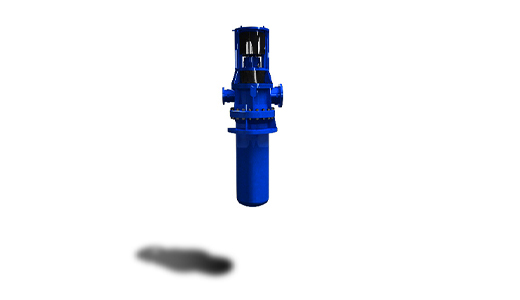

API Standard Pump VS1, VS6 – VPCS( KVSL) / VPCH (KVSH)
VPCS( KVSL) / VPCH (KVSH) is a VS1/VS6 type process pump. This pump is suitable to be installed at a below-ground level for the desired NPSH. The design ensured optimum performance at critical suction conditions. It is manufactured as per API 610, suitable to align with standard motors. The range covers a pump head of 1000 m. The pump offers a discharge pressure of up to Cl. 600#. The nozzle has the bottom-side and side-side, the direction of rotation is clockwise when viewed from the coupling end. This pump can be offered with an inducer design to reduce the column length for below surface operations.
Max Head:Upto 1000
Max capacity:Upto 45000
- Design and manufacture as per API 610
- Pumps are supplied with “Can” as outer Casing. First stage impeller can be installed at desired level below ground to ensure sufficient “Available NPSH”. This feature ensures reliable operation under critical suction conditions
- Easy inspection and repair maintenance of bearings and mechanical seal after removal of coupling spacer only
- Interstage casings and column pipes are flanged and bolted together for easy installation and maintenance
- Pumps can be furnished without “Can” for direct fitment on customer’s vessels or pits
- Inducer design is an optional feature to reduce column length below ground to increase reliability
- Light hydrocarbon and condensate handling in oil refineries and petrochemical industries
- Handling of LPG in loading / unloading applications and in LPG bottling plants
- Water condensate handling
- Sea Water , Cooling water
| Parameters | VPCS( KVSL) / VPCH (KVSH) |
| Capacity (m3/hr) | Upto 45000 |
| Head (m) | Upto 1000 |
| Temperature Range ℃ | -104 to 350 |
| Discharge Pressure rating | Upto Cl. 600 # |
| Suction Pressure kg/cm2(g) | Upto 40 |
| Nozzle Orientation (Suc./Dis.) | Bottom – Side Side-Side |
| Standard Motor Synchronous Speeds (rpm) | 1000 / 1200 / 1500 / 1800 / 3000 / 3600 |
| Max. Operating Speed (rpm) | 3600 |
| Direction of Rotation | Clockwise when viewed from the coupling end |
| Flange Ratings (#RF) | Cl. 300 / 600 |
