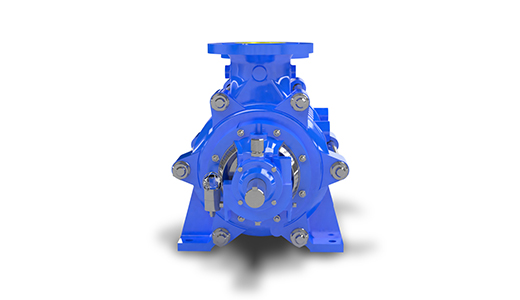

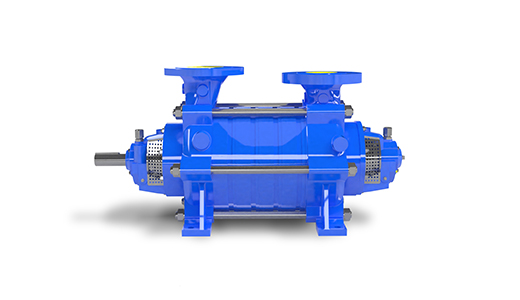

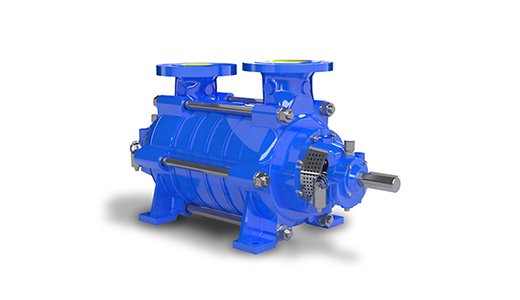

NON API Pump – BFW Pump – MSS (KBSL)
We have successfully delivered over 1000 high pressure pumps to various power plants, RO plants as well DM water applications as required in various industries.
Max Head:Upto 550 m
Max capacity:Upto 270 m3/hr
- Design and manufacture as per company standard
- Multistage pump with ring section diffuser casing design with foot mounted casing suitable for low pressure requirements
- Easy inspection and repair maintenance of bearings and mechanical seal after removal of coupling spacer only
- Specially designed to meet reliable performance for extended low cost operation
- Pump family designed to have max. parts interchangeability
- Medium pressure boiler feed applications
- Low pressure applications in water treatment plants
- Low pressure applications in light chemical plants
| Parameters | MSS (KBSL) |
| Capacity (m3/hr) | Upto 270 |
| Head (m) | Upto 550 |
| Temperature Range °C | -5 to 165 |
| Discharge Pressure | Upto Cl. 600 # |
| Suction Pressure kg/cm2(g) | Upto 11 |
| Nozzle Orientation (Suc./Dis.) | Top-Top & Side-Top |
| Standard Motor Synchronous Speeds (rpm) | 3000 / 3600 |
| Max. Operating Speed (rpm) | 3600 |
| Direction of Rotation | Clockwise when viewed from coupling end |
| Flange Ratings (#RF) | Cl. 150 / 600 |
